Aircraft

The biggest Cessna 208 fleet in Japan

Kyoritsu Air Survey has a total of 24 aircraft based at airports across Japan (as of September 1, 2021). These include 13 Cessna 208 Caravans, a small propeller aircraft that is the perfect size for performing aerial surveys. Kyoritsu Air Survey owns more Cessna 208s than any other air survey company in Japan.

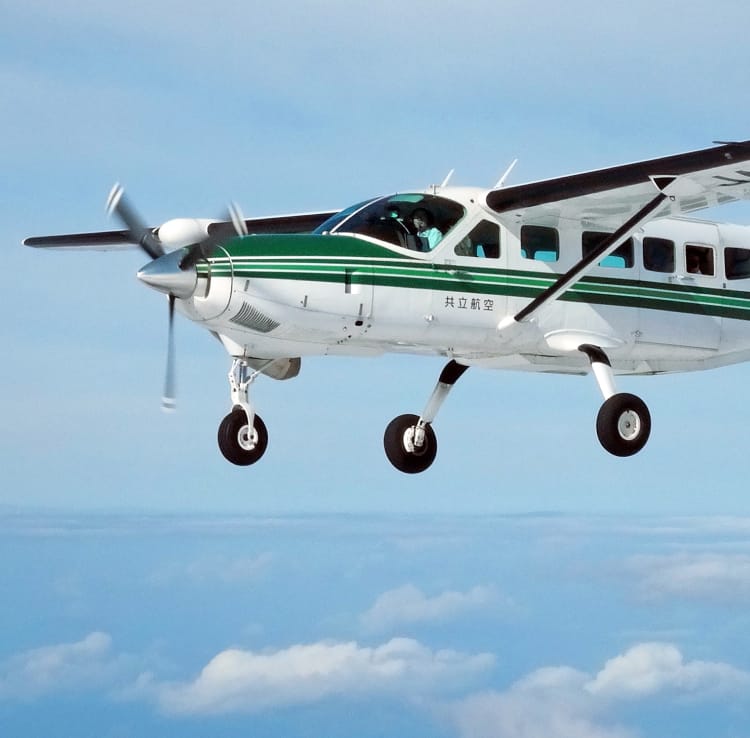

Cessna 208 Caravan

No. of aircraft in our fleet	10
Length	11.46 m (37 ft 7 in)
Wing span	15.88 m (52 ft 1 in)
Height	4.52 m (14 ft 10 in)
Power output	675 shp

Max. speed	324 km/h (296 km/h at the time of operation)
Max. operating altitude	7,619 m (25,000 ft)
Seating capacity	10 (including pilot)
Max. range	2,009 km (1,085 nm)
Max. flight time	7 h 00 min

Cessna 208B Grand Caravan

No. of aircraft in our fleet	3
Length	12.67 m (41ft 7in)
Wing span	15.88 m (52ft 1in)
Height	4.711 m (15ft 5-1/2in)
Power output	675 shp

Max. speed	324 km/h (296 km/h at the time of operation)
Max. operating altitude	7,619 m (25,000 ft)
Seating capacity	11 (including pilot)
Max. range	1,924 km (1,040 nm)
Max. flight time	6 h 30 min

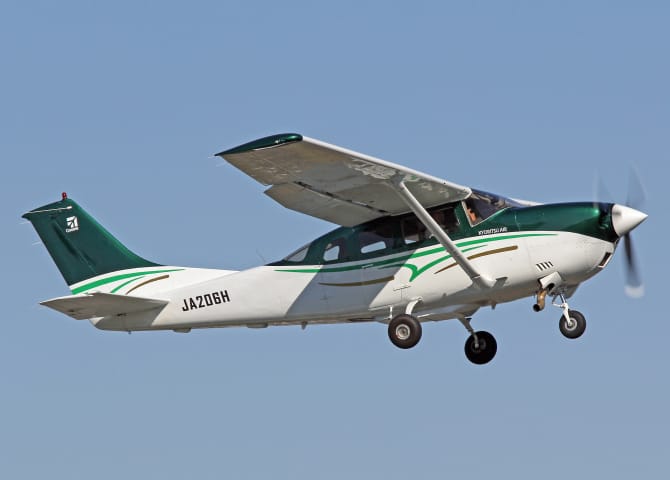

Cessna T206H
Turbo Stationair

Cessna T206H Turbo Stationair

No. of aircraft in our fleet	9
Length	8.61 m (28ft 3in)
Wing span	10.97 m (36ft 0in)
Height	2.83 m (9ft 3.5in)
Power output	310 hp

Max. speed	337 km/h (240km/h at the time of operation)
Max. operating altitude	8,230 m (27,000 ft)
Seating capacity	6 (including pilot)
Max. range	1,300 km (702 nm)
Max. flight time	3,600 lbs

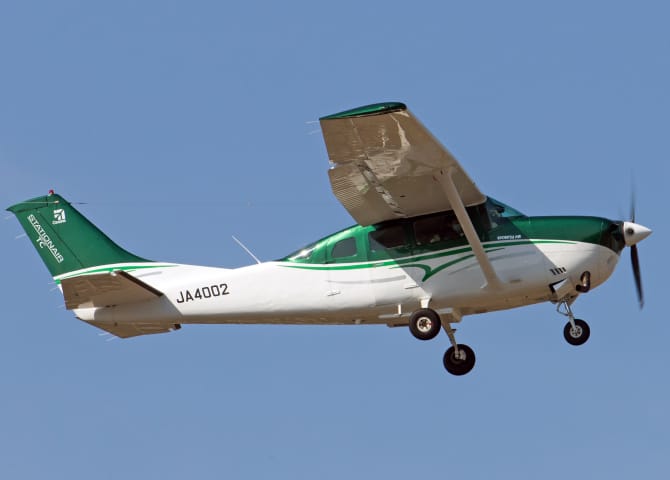

Cessna TU206G
Turbo Stationair 6

Cessna TU206G Turbo Stationair 6

No. of aircraft in our fleet	2
Length	8.61 m (28ft 3in)
Wing span	10.97 m (36ft 0in)
Height	2.83 m (9ft 3.5in)
Power output	310 hp

Max. speed	337km/h (240km/h at the time of operation)
Max. operating altitude	8,230 m (27,000 ft)
Seating capacity	6 (including pilot)
Max. range	1,300 km (702 nm)
Max. flight time	3,600 lbs
